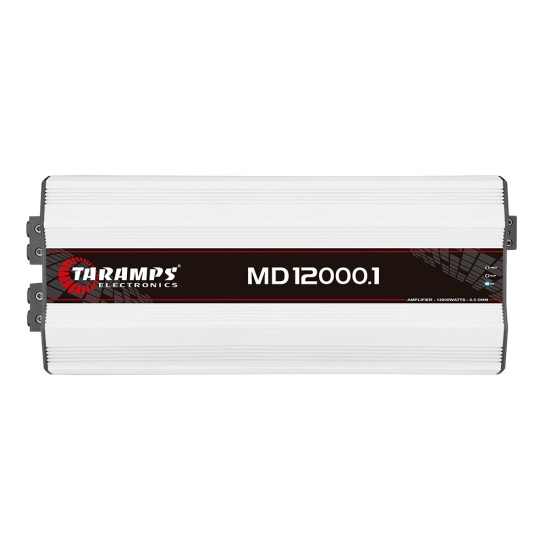

Taramps MD 12000.1 0,5 Ohm

The MD 12000.1 amplifier is carefully developed with state-of-the-art technology, offering unique efficiency and performance for automotive audio systems. Classified as Mono, it has a maximum power of 12.000 watts RMS, running at a 0.5-ohm impedance, with a single 12.000 watts RMS channel. This amplifier is FULL-RANGE, operating on all frequencies in the right measure.Operation class Class DNumber of Channels 01Maximum power @ 12.6 VDC - 0.5 OHM: 12,000W RMS @ 12.6 VDC - 1 OHM: 7,200W RMSInput Sensitivity 220mVSignal to Noise Ratio >95dBFrequency Response 10 Hz ~5 kHz (-3dB)Crossover high pass (HPF) 10 Hz ~90 Hz (-12dB/8th) VariableCrossover low pass (LPF) 90 Hz ~5 kHz (-12dB/8th) VariableBass Boost Freq.: 35 Hz ~55 Hz Boost: 0 ~10dBEfficiency 79%Input Impedance 15K ohmsOutput Impedance 0,5 ohmProtection system Output Short circuit, Output Short circuit in relation to the GND, Low Impedance Protection / High or Low voltage Protection / Thermal protectionMin. Supply Voltage 9VDCMaximum Power Supply Voltage 16VDCConsumption at rest 3.6AMaximum music consumption 602.5AMaximum consumption in sinusoidal signal 1,205ADimensions (H x W x D) mm 8.976 x 2.755 x 21.653 inches (228 x 70 x 550mm)Weight 17.526 lbs (7.95 kg)
