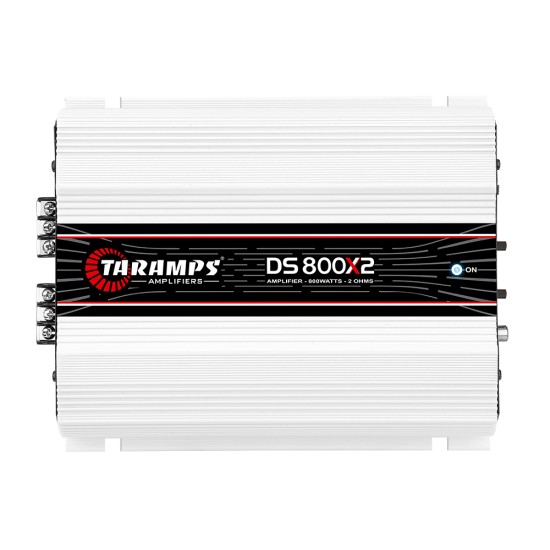

Taramps DS 800 X 2

Description The DS800X2 was designed for anyone who likes to enjoy all frequency ranges with high definition and technology for car audio systems. It is stereo, with a maximum power of 800 Watts RMS and an impedance of 2 ohms. It has 2 channels of 400 Watts RMS each, or 1 channel connected in BRIDGE with 800 Watts at 4 ohms. The DS 800X2 is FULL RANGE and will certainly play all frequencies the way you like it most.Technical informationOperation class Class DNumber of Channels 02Maximum power @ 12.6 VDC - 2 OHMS: 800WRMS (2 x 400WRMS) @ 12.6 VDC - 4 OHMS: 500WRMS (2 x 250WRMS) @ 12.6 VDC - 8 OHMS: 240WRMS (2 x 120W) 1 Bridgeable CHANNELS: @12.6 VDC - 4 OHMS: 800WRMS (1 x 800WRMS)Input Sensitivity 250mVSignal to Noise Ratio >96dBFrequency Response 10Hz to 22KHz (-3dB)Crossover high pass (HPF) 80Hz to 2.2KHz (-6dB/8a) VariableCrossover low pass (LPF) 80Hz (-12dB/8ª) FixedEfficiency 83%Input Impedance 18K OhmsOutput Impedance 2 Ohmsprotection system output overloadMin. Supply Voltage 9VDCMaximum Power Supply Voltage 16VDCConsumption at rest @12.6 VDC: 0.85AMaximum music consumption @12.6 VDC: 38AMaximum consumption in sinusoidal signal 77ADimensions (WxHxD) 7.24" x 2.13" x 7.48" (173 x 52 x 227mm)Weight 3.04lb (1,43kg)EAN 7898556844048 Technical information Operation class Class DNumber of Channels 02Maximum power @ 12.6 VDC - 2 OHMS: 800WRMS (2 x 400WRMS) @ 12.6 VDC - 4 OHMS: 500WRMS (2 x 250WRMS) @ 12.6 VDC - 8 OHMS: 240WRMS (2 x 120W) 1 Bridgeable CHANNELS: @12.6 VDC - 4 OHMS: 800WRMS (1 x 800WRMS)Input Sensitivity 250mVSignal to Noise Ratio >96dBFrequency Response 10Hz to 22KHz (-3dB)Crossover high pass (HPF) 80Hz to 2.2KHz (-6dB/8a) VariableCrossover low pass (LPF) 80Hz (-12dB/8ª) FixedEfficiency 83%Input Impedance 18K OhmsOutput Impedance 2 Ohmsprotection system output overloadMin. Supply Voltage 9VDCMaximum Power Supply Voltage 16VDCConsumption at rest @12.6 VDC: 0.85AMaximum music consumption @12.6 VDC: 38AMaximum consumption in sinusoidal signal 77ADimensions (WxHxD) 7.24" x 2.13" x 7.48" (173 x 52 x 227mm)Weight 3.04lb (1,43kg)EAN 7898556844048                                                          Operation class (PT) Classe DNumber of Channels (PT) 02Maximum power(PT) @ 12,6 VDC - 2 OHMS: 800W RMS (2 x 400W RMS) @ 12,6 VDC - 4 OHMS: 500W RMS (2 x 250W RMS) @ 12,6 VDC - 8 OHMS: 240W RMS (2 x 120W 1 Bridged CHANNELS: @12.6 VDC - 4 OHMS: 800WRMS (1 x 800WRMS)Input Sensitivity (PT) 250mVSignal to Noise Ratio (PT) >96dBFrequency response (PT) 10Hz a 22KHz(-3dB)Crossover high pass (HPF) (PT) 80Hz a 2,2KHz (-6dB/8ª) VariávelCrossover low pass (LPF) (PT) 80Hz(-12dB/8ª) FixoEfficiency (PT) 83%Input Impedance (PT) 18K OHMSOutput Impedance (PT) 2 OHMSProtection system (PT) Curto na Saída / Tensão de Alimentação BaixaMin. Supply Voltage (PT) 9VDCMaximum Power Supply Voltage (PT) 16VDCConsumption at rest (PT) 0,85AMaximum music consumption (PT) @12,6VDC 38AMaximum consumption in sinusoidal signal (PT) @12,6VDC 77ADimensions (H x W x D) mm (PT) 184 x 54 x 190mmWeight (PT) 1,38Kg
