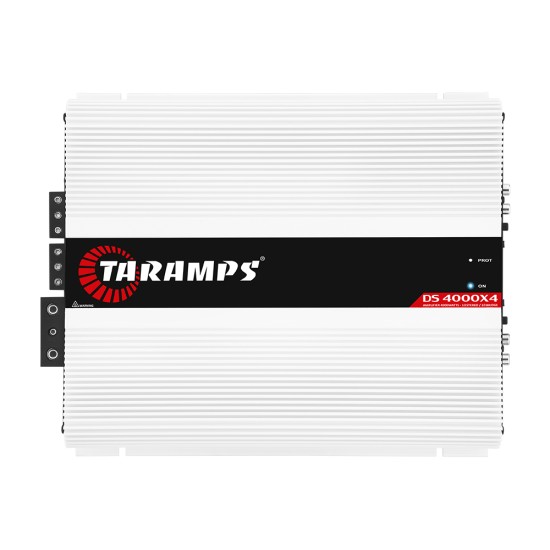

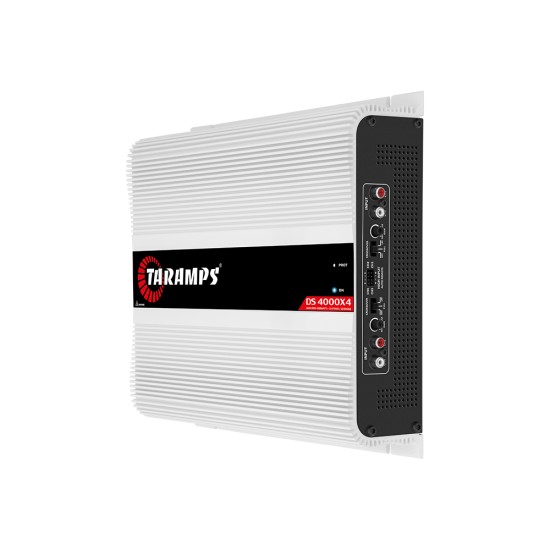

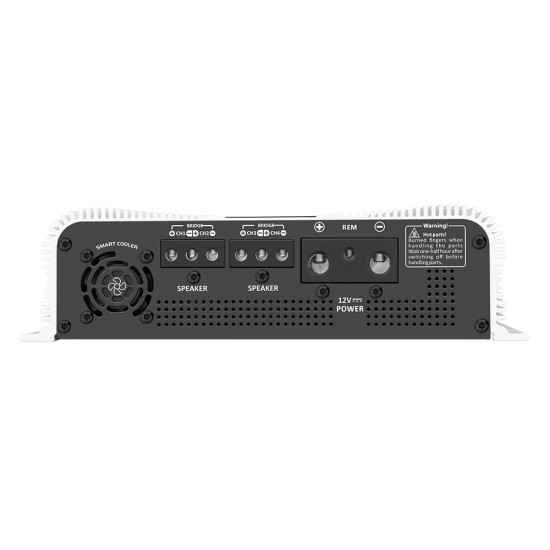

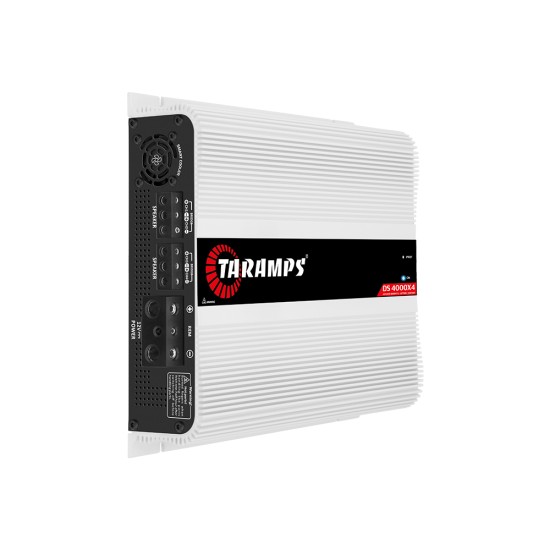

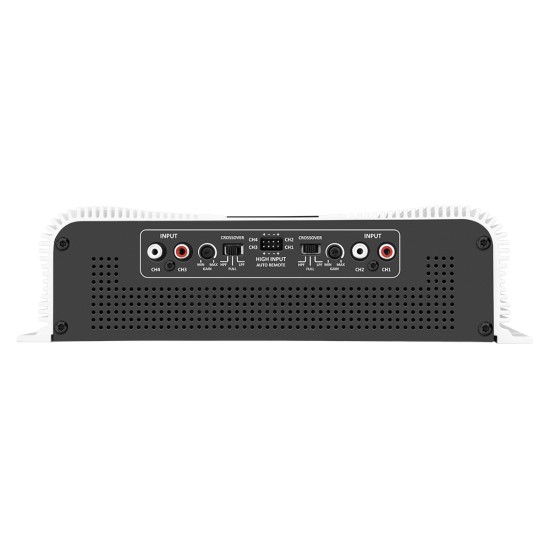

Taramps DS 4000 X 4 1 OHM
Description
Designed with high technology, the DS 4000×4 is a versatile 4000 Watt amplifier spread out in 4 channels of 1000 Watts RMS that can be bridged. This incredible product is able to amplify naturally and with high quality the most varied types of sound systems, suiting to all musical styles. Another great new feature is the High level input with 4 individual channels and automatic activation, which makes it compatible with most head units on the market, including ORIGINAL HEAD UNITS AND MULTIMEDIA, without the need for adapters. In addition, it has the traditional RCA inputs, Gain adjustment and fixed Crossover (HPF, LPF and Full). All this and more, so that your musical experience is even better. Technical informationOperation class
DNumber of Channels
04Maximum power
@ 14,4 VDC - 1 Ohm: 4000W RMS (4 x 1000W RMS) @ 14,4 VDC - 2 Ohms: 2400W RMS (4 x 600W RMS) 2 Bridged Channels 2 OHMS: (2 x 2000WRMS)Input Sensitivity
(Gain = Max): 250mV (RCA) / 3V (WIRE) (Gain = Max): 4V (RCA) / >10V (WIRE)Signal to Noise Ratio
>86dBFrequency Response
8Hz~20KHz (-3dB)Crossover high pass (HPF)
90Hz (-12dB/8ª) FixedCrossover low pass (LPF)
90Hz (-12dB/8ª) Fixedprotection system
Output Short CircuitMinimum Supply Voltage
9VDCMaximum Supply Voltage
17VDCConsumption at rest
2.5AMaximum music consumption
185AMaximum consumption in sinusoidal signal
370ADimensions (WxHxD)
10.55" x 2.83" x 13.11" (268 x 72 x 333mm)Weight
11.15lb (5,06Kg)EAN
7898556849258
