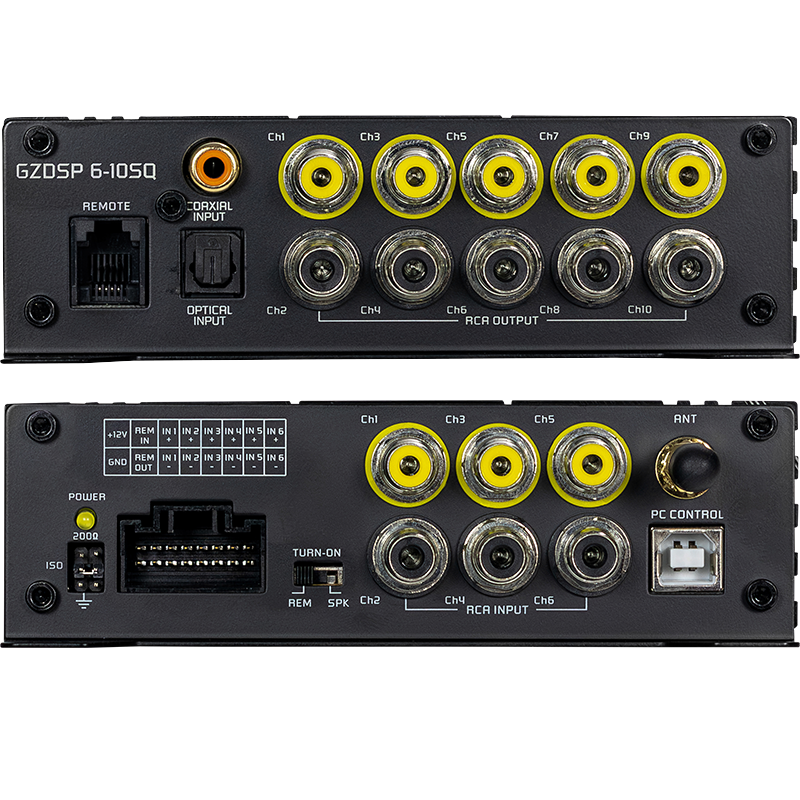

GZDSP 6-10SQ
10-channel digital signal processor
10-channel DSP
Digital sound processor with six channel high-level or RCA input, digital inputs and Bluetooth functionality
- Premium DAC with differential signal routing (Asahi Kasei 445x)
- Optical- and digital input
- Input equalizer
- 2x 28 bit Analog Devices Prozessor (ADAU1452)
- High-quality OP amps with lowest noise and distortion behavior (OPA 1678)
- Separate 31 band equalizer for each channel
- 7 band input equalizer
- Time delay
- Windows GUI software
- Automatic turn-on function

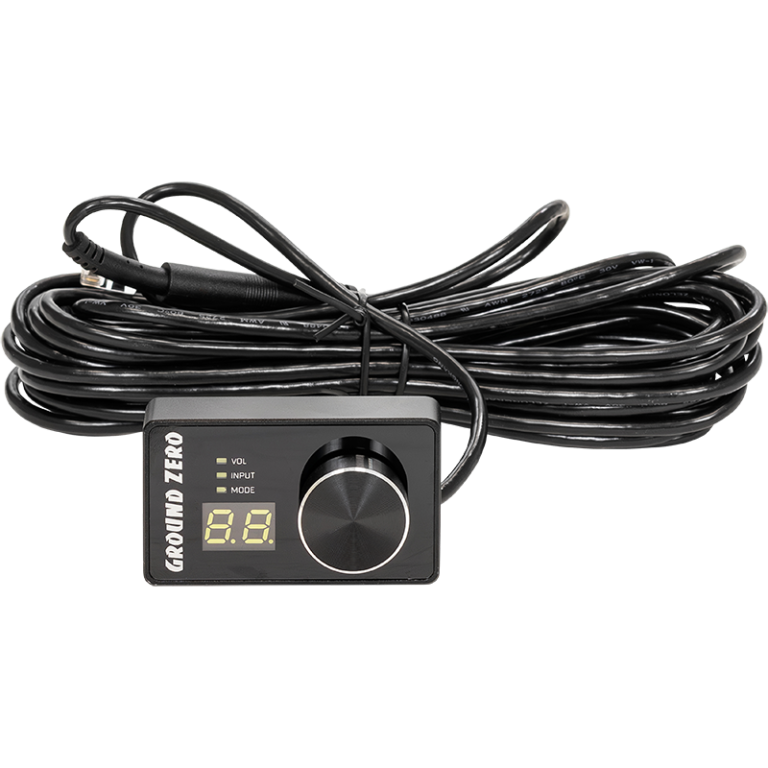

Type 10-channel digital signal processor High resolution compatible no TOSLINK input yes Coaxial connector yes High-level audio mix up to 6 channels Frequency response 20 Hz – 20 kHz Signal-to-Noise > 113 dB (A-weighted) Input sensitivity 0.5 – 3 V (RCA) Input sensitivity 2 – 8 V (high-level) Max. pre-out voltage 3.8 V RMS Remote control optional Preset memory 10 Dimensions (w x l x h) 132 x 143 (171) x 38,5 mm / 5.20 x 5.63 (6.73) x 1.52″
