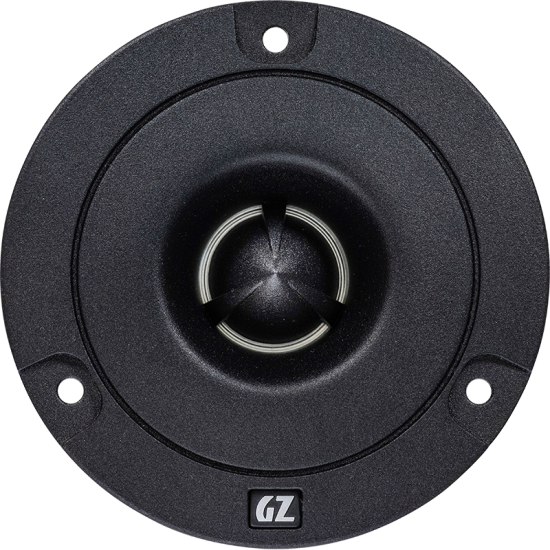

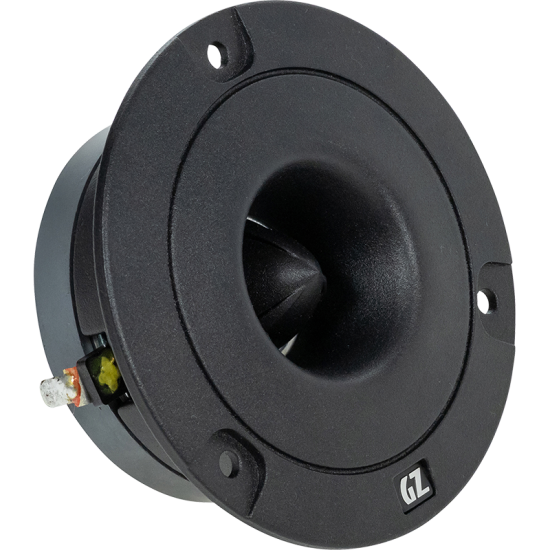

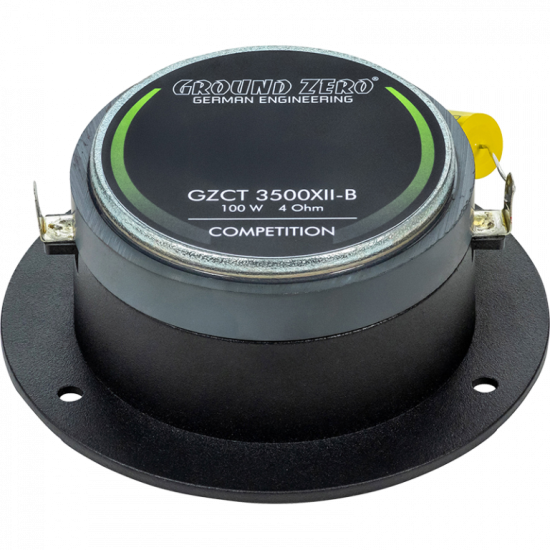

GZCT 3500XII-B

100 Watts max

1″ high power compression tweeter with aluminum dome and 40° dispersion

• 25 mm / 1″ aluminum dome compression tweeter
• 25 mm / 1″ CCA voice coil
• Aluminum cone
• Ferrite motor
• Aluminum cast housing
• Soldering terminal
• 1 pair / package

• Model	Compression tweeter with aluminum dome
  Diameter	25 mm / 1″
  Power handling (RMS/max.)	30 / 100 Watts
  Impedance	4 Ohms
  Efficiency	100 dB
  Frequency Response	3000 Hz – 25 kHz
  Voice coil	25 mm / 1″ CCA
  Dome	Aluminum
  Mounting Ø	72 mm / 2.83″
  Mounting depth	36 mm / 1.42″
