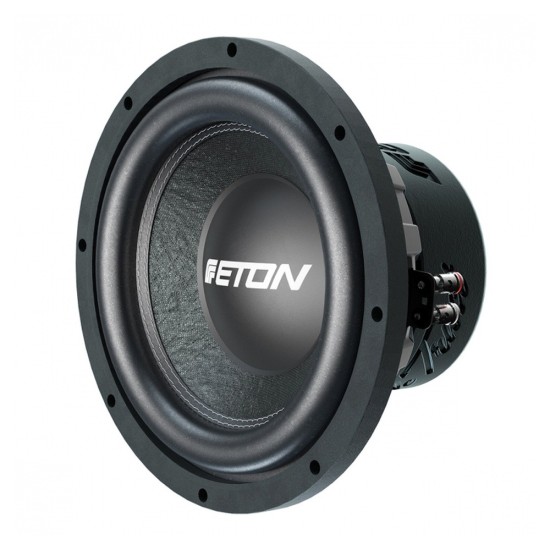

Eton PW10 Subwoofer 10'' 500W RMS
Eton PW10 Subwoofer 10"
TECHNICAL DATA
| size | 10 "/ 25 cm |
| outer diameter | 278 mm |
| Installation depth | 135 mm |
| Nominal load capacity | 500 W RMS |
| Music resilience | 1000 W |
| Impedance | 2 x 2 ohms |
| Number of voice coils | 2 |
| Magnetic drive | Ferrite magnet |
| Nominal impedance Zn (Ω) | 2 x 2 Ω |
| DC resistance Re | 3.8 Ω |
| Resonance frequency fs 1W / TSP (Hz) | 33.6 |
| Total Q QTS | 0.510 |
| Electrical Q QES | 0.560 |
| Mechanical Q QMS | 5.753 |
| Equivalent air volume of suspension VAS (dm3) | 20.330 |
| Force factor BL x l (Tm) | 15.720 |
| Suspension compliance CMS (mm/N) | 0.151 |
| Total moving mass MMS (g) | 148 |
| Voice coil diameter | 60 |
| Voice coil inductance Le (mH) @ 10 kHz | 1.844 |
| Effective piston area SD (cm2) | 308 |
| SPL (dB) *bei 1 W / 1m | 84.5 |
| Rated power / music power (W) | 500 / 1000 W |
