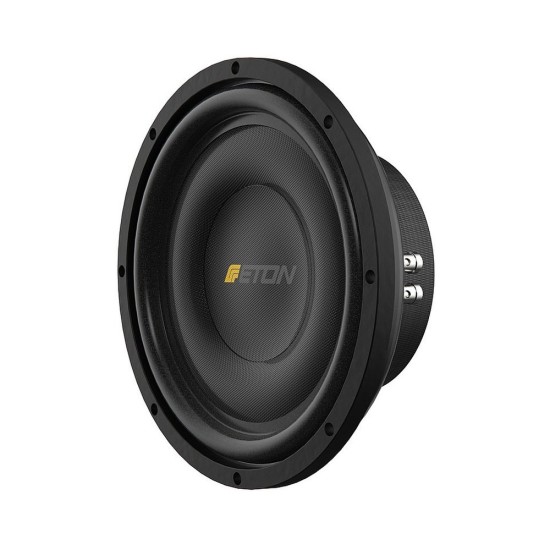

Eton M10 FLAT Subwoofer
Eton M10 FLAT Subwoofer 10"
Nominal impedance Zn (Ω) 2 x 2 Ohm
DC resistance Re 2 x 2,1
Resonance frequency fr 1W / TSP (Hz) 37 / 39
Suspension compliance CMS (mm/N) 0,10
Mechanical Q QMS 11,78
Electrical Q QES 0,75
Total Q QTS 0,70
Mechanical resistance RMS (kg/s) 3,5
Total moving mass MMD (g) 168 g
Effective piston area SD (cm2) 346
Voice coil inductance Le (mH) 3,1
Force factor BL x l (Tm) 14,1
Equivalent air volume of suspension VAS (dm3) 17
SPL (dB) *bei 2,83 V / 1m 86
Rated power / music power (W) 300/600
| size | 10 "/ 25 cm |
| Mounting diameter | 230 mm |
| outer diameter | 265 mm |
| Installation depth | 91 mm |
| Nominal load capacity | 300 W RMS |
| Music resilience | 600 W |
| Impedance | 2 x 2 ohms |
| Number of voice coils | 2 |
| Magnetic drive | Ferrite magnet |
