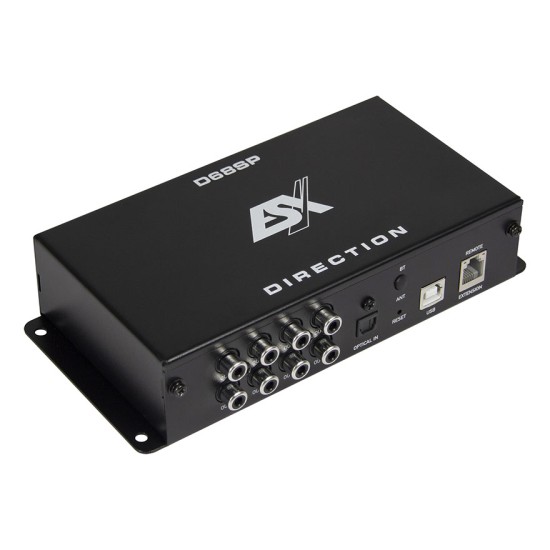

ESX D68SP

DSP Chip from Analog Devices™ 32 Bit, 294 MHz, Full HD Audio 96 kHz Signal Converter from AKM Velvet Sound™ A/D 32 bit, D/A 32 bit HP/LP/BP @ 6-48 dB, Phase Shift, Time Correction 0 ~ 20 ms/0.01 ms steps Up to 248 output EQs, 120 input EQs (PEQ/HSLF/LSLF) +/- 12 dB, 0.5 dB steps) Input Mixer, Subwoofer Controller, Preset Auto Switch, Priority Input Mode Input Sensitivity: Low Level 1 ~ 6 V/RMS, High Level 1 ~ 15 or 15 ~ 45 V/RMS Signal-to-noise Ratio (A-weighted): Analog Input 106 dB, Digital Input 111 dB Optical S/PDIF Input Total Harmonic Distortion: Analog Input <0.0015%, Digital Input <0.0009% Optional Accessories: BT-D (Bluetooth® module), RC-DQ (LCD remote control)Digital 6-Channel Signal Processor with 8-Channel OutputInput: 6 x RCA Input, balanced 6 x High Level Input (via Molex Connector) 1 x Optical stereo, S/PDIF 192 kHz, 24 bit 1 x USB Type B for PC Software 1 x RJ45 for Remote Controller / Extension Cable 1 x Power Input incl. REM OUT and MODE switch pin   Outputs: 6 x RCA @ 6 V RMS   Dimensions: 105 x 40 x 185 mm
