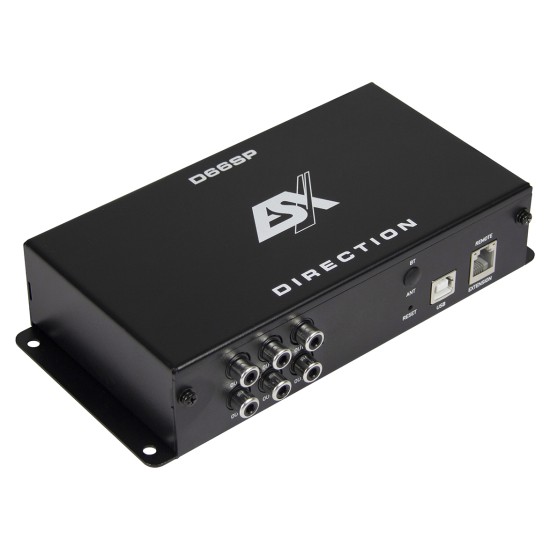

ESX D66SP

FeaturesDSP Chip from Analog Devices™ 32 Bit, 294 MHz, Full HD Audio 96 kHz Signal Converter from AKM Velvet Sound™ A/D 32 bit, D/A 32 bit HPF/LPF/BP @ 6-48 dB, Phase Shift, Time Correction 0 ~ 20 ms/0.01 ms steps Up to 248 output EQs, 120 input EQs (PEQ/HSLF/LSLF) +/- 12 dB, 0.5 dB steps) Input Mixer, Subwoofer Control, Priority Input Mode for digital Sources Input Sensitivity: Low Level 1 ~ 6 V/RMS, High Level 1 ~ 15 or 15 ~ 45 V/RMS Signal-to-noise Ratio (A-weighted): Analog Input 106 dB, Digital Input 111 dB Total Harmonic Distortion: Analog Input <0.0015%, Digital Input <0.0009% REM OUT function for external devices, MODE switching input for e.g. convertible tops (Preset Auto Switch) Optional Accessories: BT-D (Bluetooth® Module), RC-DQ (LCD Remote Controller)Specifications Digital 6-Channel Sound Processor 6 x RCA Input, balanced 6 x High Level Input with EPS PRO up to 40 V/RMS (via Molex) 1 x USB Type B Socket for PC Software 1 x RJ45 Socket for Remote Controller 6 x RCA Output @ 6 V RMS Dimensions 105 x 40 x 185 mmDownloads Owner's Manual DSP Software ESX Toolkit App Quick Start Guide Test Review
