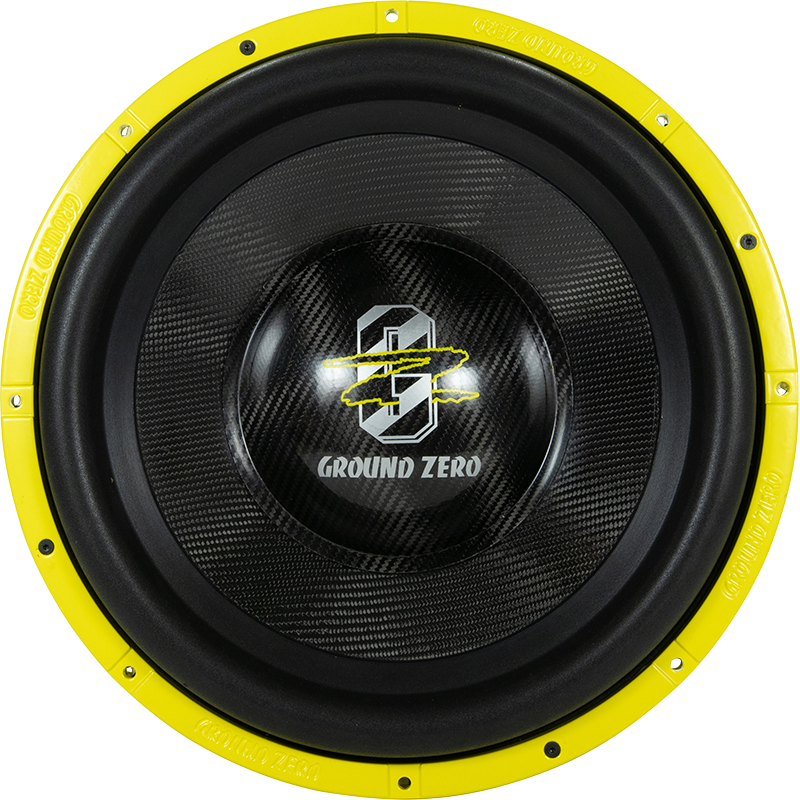

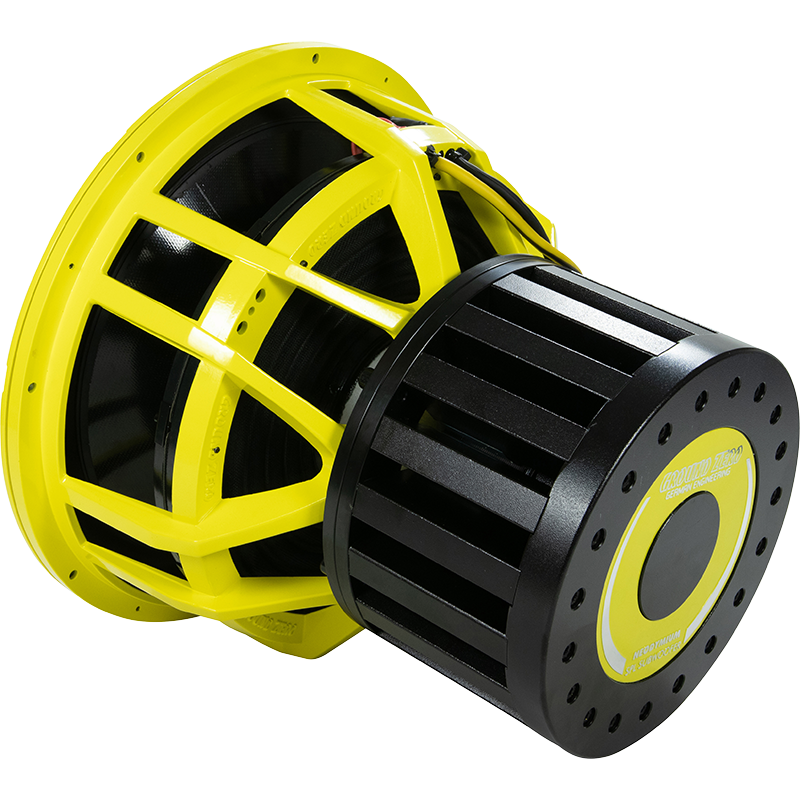

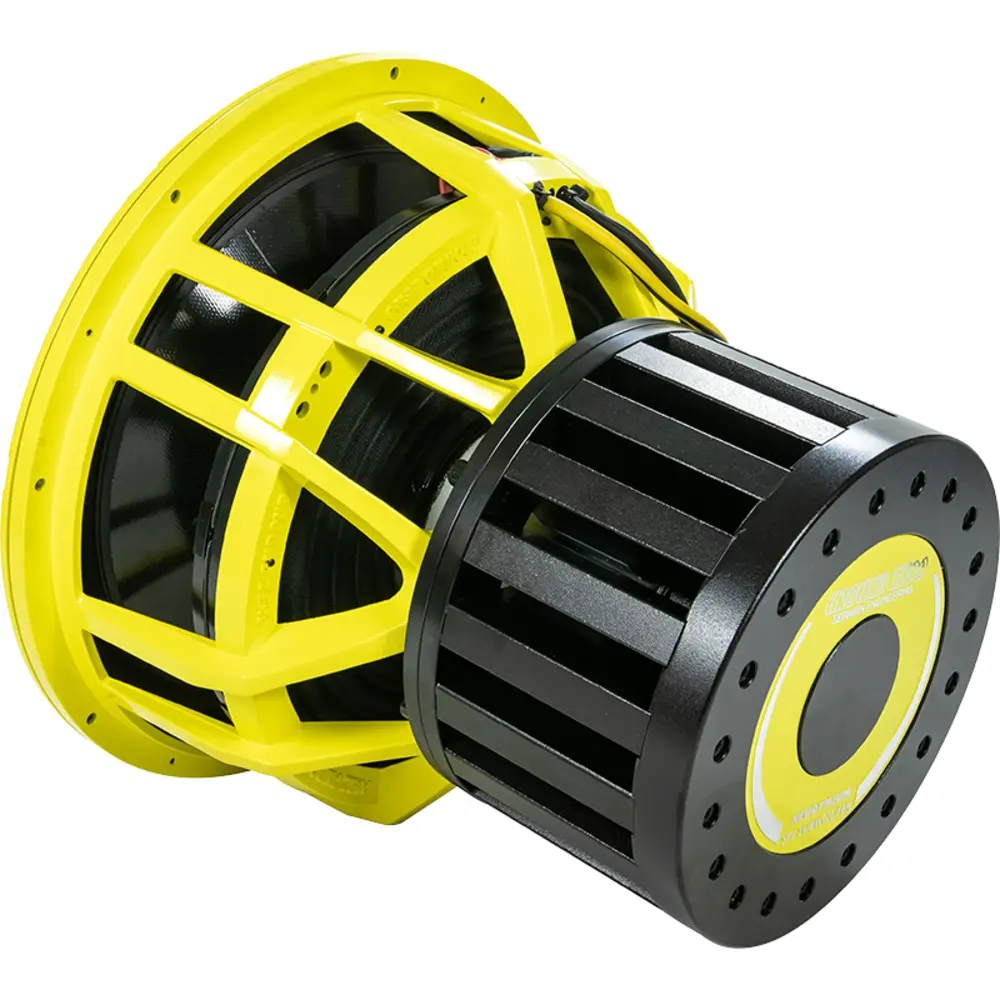

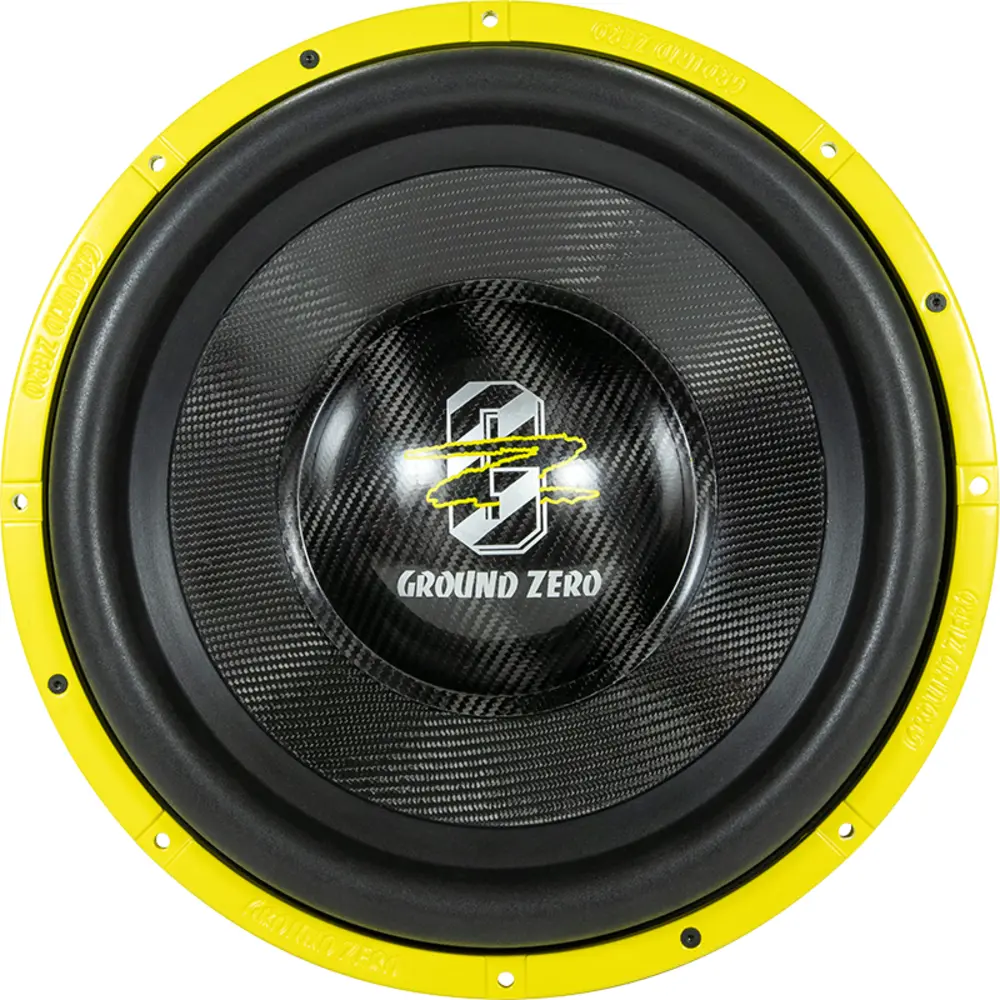

GZPW 15NEO-XSPL

25000* Watts SPL

15″ high power SPL subwoofer with airflow optimized aluminum cast basket

• 15″ high power SPL subwoofer
• Klippel® optimized
• Carbon-fiber cone
• Multi-piece neodymium motor
• Airflow optimized aluminum cast basket
• 100 mm / 4″, 8-layer flat wire CCA voice coil
• 7-layer 12” spider
• Carbon fiber dust cap
• Fixed connection cables
• *for 3 sec

• Type	Neodymium SPL Subwoofer
  Diameter	38 cm / 15″
  Power handling (RMS/SPL)	6500 / 25000* Watts
  Impedance	2x 1 Ohm
  Efficiency	90 dB
  Power recommendation	4500 – 6500 Watts
  Voice coil	100 mm / 4″ aluminium
  Cone	Carbon
  Max. excursion (Xmax)	60 mm / 2.36″
  Mounting Ø	360 mm / 14.17″
  Mounting depth	325 mm / 12.8″
  Resonance frequency (Fs)	31 Hz
  Dämpfungsgrad (Qts)	0.15
  Damping ratio (Qts)	26 L / 0.92 cu.ft.
