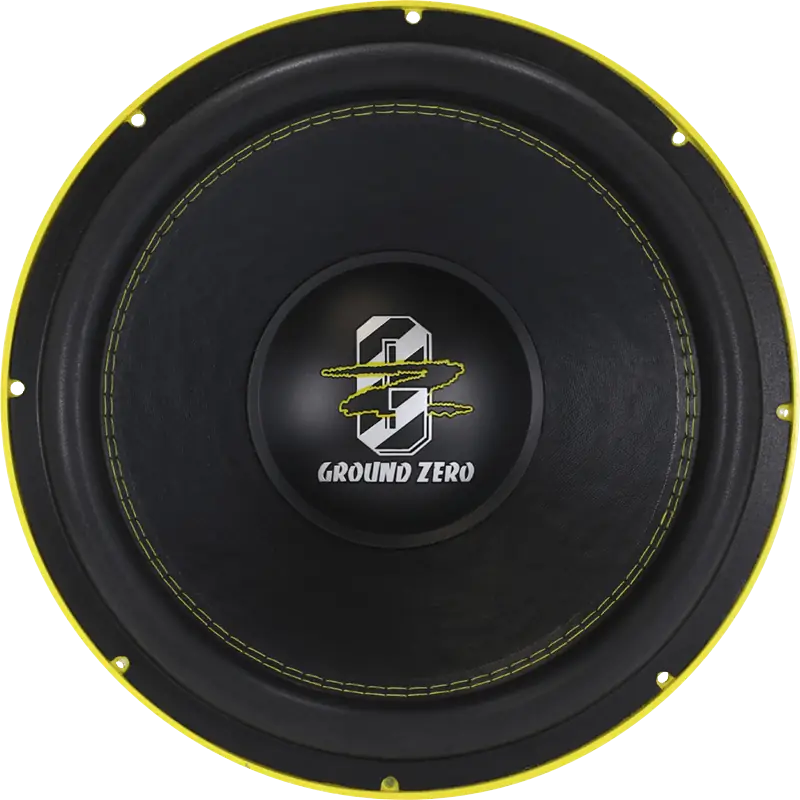

GZNW 38NEO-SPL

5000 Watt SPL

15″ high power SPL subwoofer with aluminum cast basket and multipiece neodymium magnet

• 15″ high power SPL subwoofer with neodymium motor
• Klippel® optimized
• Reinforced paper cone
• SPL U-shape surround
• Solid aluminum cast basket
• 75 mm / 3″ 8-layer aluminum voice coil
• 3-layer Nomex spider
• Reinforced paper dust cap

• Model	Neodymium SPL Subwoofer
  Diameter	38 cm / 15″
  Power handling (RMS/SPL)	2500 / 5000 Watts
  Impedance	2x 1 Ohms
  Efficiency	91 dB
  Power recommendation	1500 – 5000 Watts
  Voice coil	75 mm / 3″ CCA
  Cone	Fiber reinforced paper
  Max. Excursion (Xmax)	64 mm
  Mounting depth	300 mm
  Resonance frequency (Fs)	25.8 Hz
  Damping ratio (Qts)	0.111
  Equiv. air volume (Vas)	50.8 L
