165RS LE

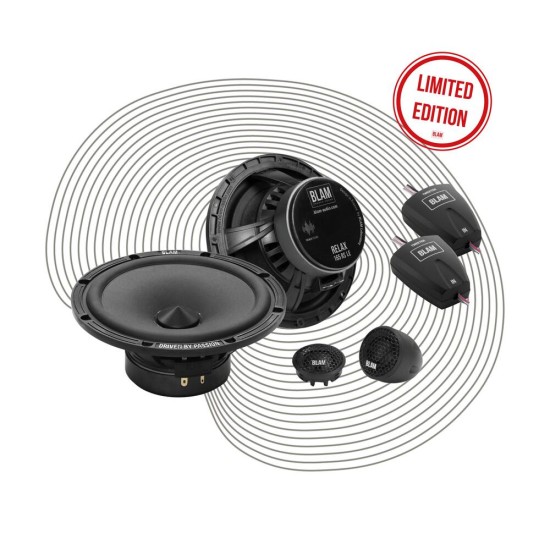

2-WAY 165 MM SPEAKER SYSTEM Technical specification This kit consists of two 165mm (6.5″) woofers, two 25mm (1″) soft dome tweeters and two separate 6dB/octave crossovers with adjustable tweeter level -3dB, 0dB and +3dB. High-efficiency 2-way 165 mm system Max. power 150 W – Nominal power 75 W Frequency response 60 Hz – 25 kHz Sensitivity 95 dB – Impedance 2 Ω Composition 165 MM WOOFER 165 mm (6.5″) woofer Maximum power 150 W / Nominal power 75 W Frequency response 60 Hz – 8 kHz Sensitivity 95 dB – Impedance 2 Ω Fiberglass-reinforced composite saladier – High-quality treated cellulose pulp diaphragm – Butyl peripheral suspension – “Conex” long-life spider – Magnetic motor Long-life “Conex” spider – 25 mm coil on Kapton support – 85 mm x 17 mm magnetic motor – Thick magnetic circuit (5 mm) SOFT DOME TWEETER High-quality 20 mm soft dome tweeter Maximum power 100 W / Nominal power 10 W Frequency response 2.5 kHz – 25 kHz Sensitivity 90 dB – Impedance 3 Ω N38 neodymium motor – Special high-quality soft dome – Ferrofluid for high power output Filtres 2 voies low-pass 6 dB/octave 12 dB/octave high-pass with adjustable tweeter levels -3 dB, 0 dB and +3 dB. Accessoires fournis : Mounting screws Mounting accessories for tweeters – incl. inclined stand Operating instructions
