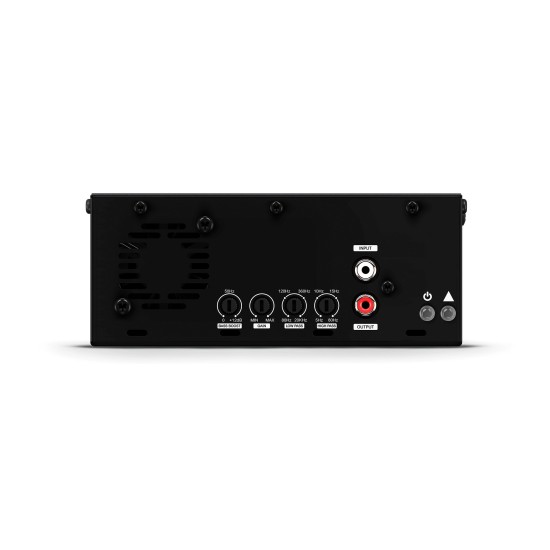

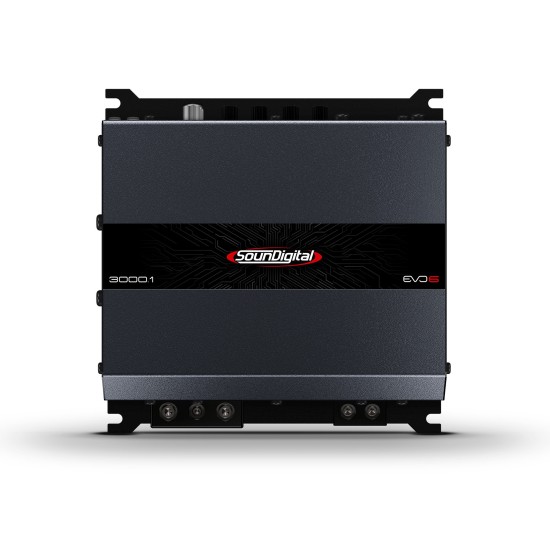

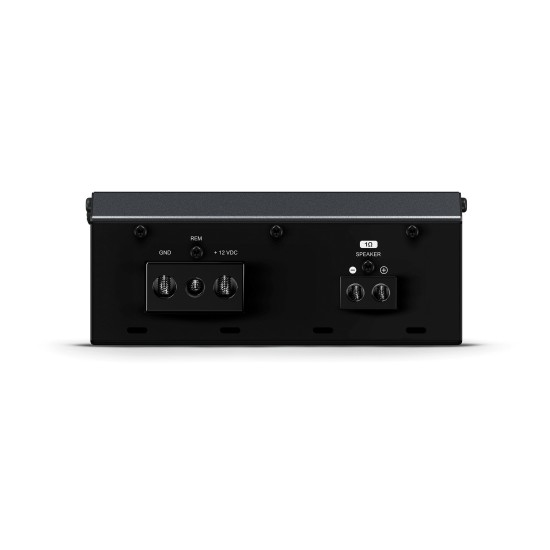

SD3000.1 EVO6
Εξαντλημένο
The 3000.1 EVO6 is a compact, modern amplifier that delivers 3000W RMS of power over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Frequency Response (-3dB):
5Hz ~ 20kHz
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Low Pass Filter (12dB/octave):
80Hz ~ 20kHz
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
High Pass Filter (12dB/octave):
5Hz ~ 80Hz
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Operating Voltage:
10V ~ 16V
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
SNR:
>90dB
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Input Sensitivity (RCA):
200mV
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Current Draw (music):
140A
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Current Draw (max.):
280A
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Power Cable:
35mm² (2 AWG)
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Speaker Cable:
6mm² (9 AWG)
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Recommended Fuse* (music):
150A
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Recommended Battery (minimum):
150Ah
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Width:
5.92 / 15,5 cm
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Lenght:
5.80 / 14,7 cm
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Height:
2.38 / 6,6 cm
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Weight:
1.47 kg (3.24 lb)
