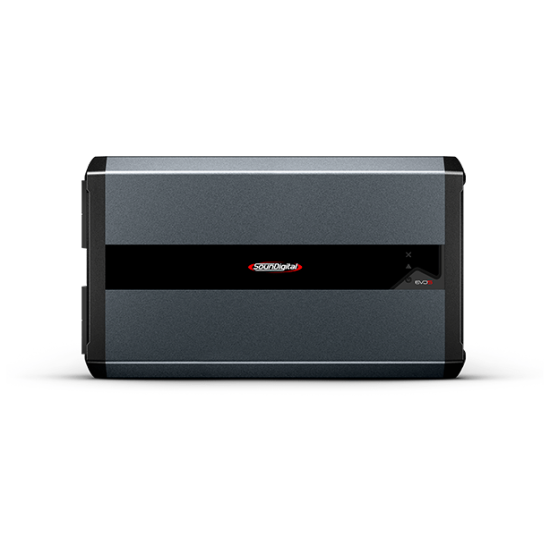

SD8000.1 EVO 5
The 8000.1 EVO 5 is a compact and modern amplifier that delivers 8000W RMS of power in 1 channel.
Incorporated with the innovative MCPCB board. Increasing your efficiency and ensuring much more consistent performance.
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
8000.1 EVO 5 – 1 OHM
Power @ 4Ω: 1 X 3844 WRMS
Power @ 2Ω: 1 X 5360 WRMS
Power @ 1Ω: 1 X8000 WRMS- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
8000.1 EVO 5 – 1 OHM
Power @ 4Ω: 1 X 3844 WRMS
Power @ 2Ω: 1 X 5360 WRMS
Power @ 1Ω: 1 X 8000 WRMS - https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
8000.1 EVO 5 – 2 OHMS
Power @ 4Ω: 1 X 5360 WRMS
Power @ 2Ω: 1 X 8000 WRMS
Power @ 1Ω: N/A - https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Frequency Response (-3dB):
8Hz ~ 20kHz
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Subsonic (12dB/oct):
8Hz ~ 80Hz
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Low Pass filter (12dB/oct):
50Hz ~ 20kHz
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Bass Boost:
0dB ~ 12dB @ 50Hz
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Operating Voltage:
9V ~ 16V
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
SNR
@ 1Ω: 92dB
@ 2Ω: 85dB - https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Input Sensitivity (RCA):
0.2V ~ 2V
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Input Sensitivity (High Level input):
1.3V ~ 15V
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Current Draw (music):
381A
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Current Draw (max.)
762A
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Total Efficiency:
80%
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Damping Factor (@100Hz nominal impedance)
>10000
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Power Cable:
70mm² (00 AWG)
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Speaker Cable
2 x 10mm² (7 AWG)
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Recommended Fuse (music):
2 x 200A
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Recommended battery (minimum):
2 x 220Ah
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Width:
7.1" / 18 cm
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Length:
12.2" / 31 cm
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Height:
2.5" / 6.32 cm
- https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">
Weight:
8.79 lb / 3.99 kg
